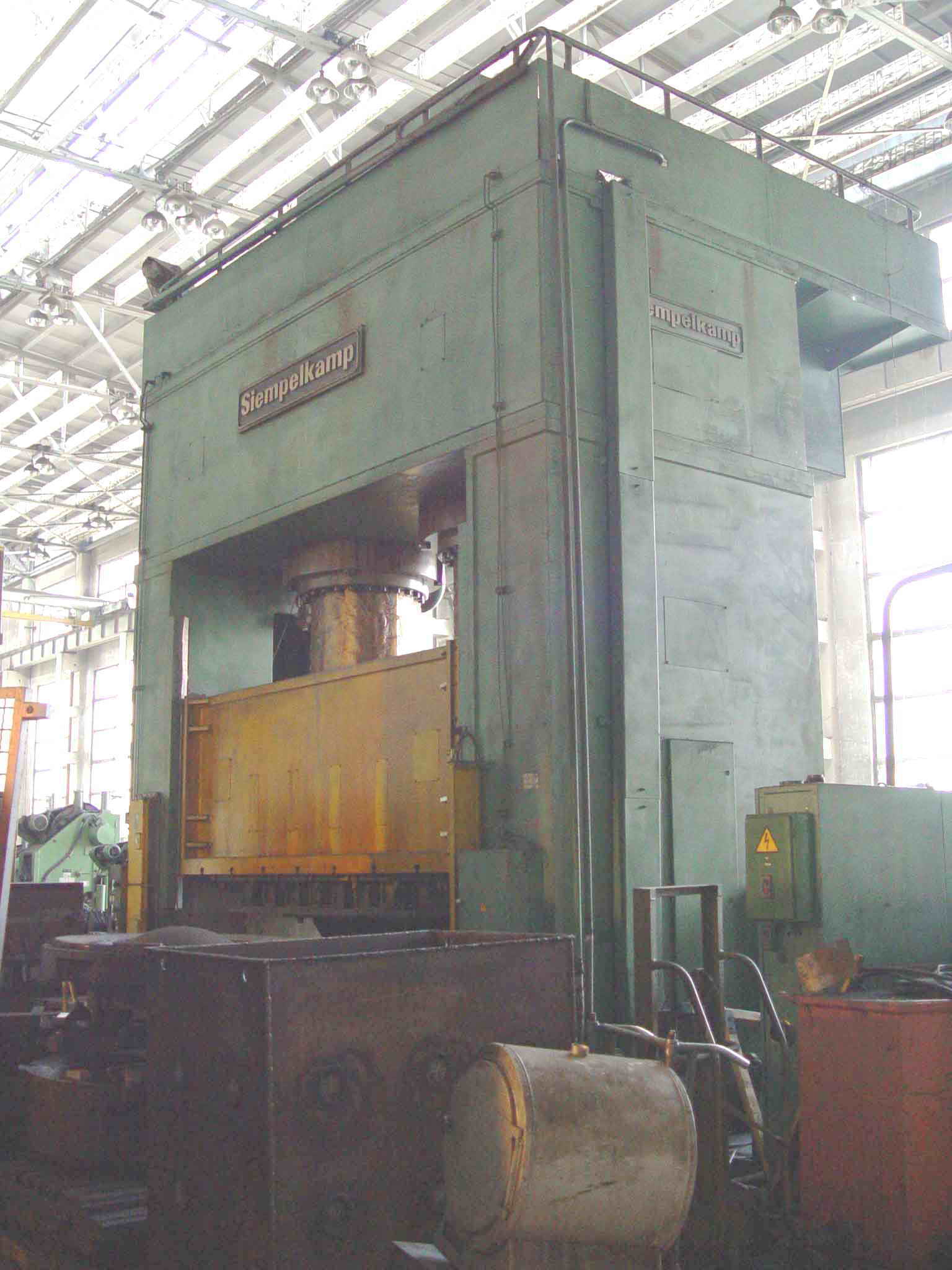

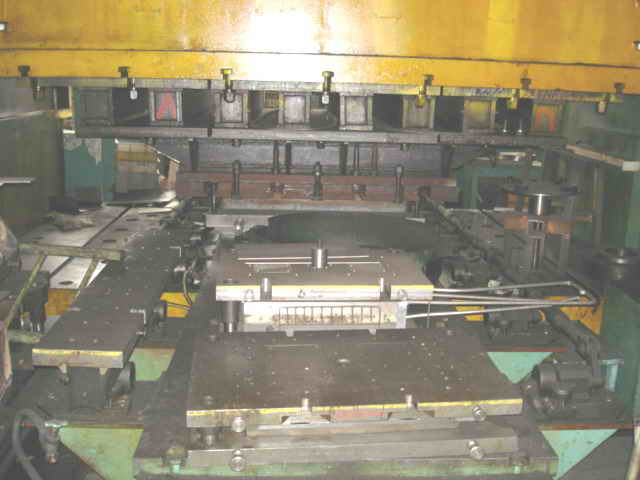

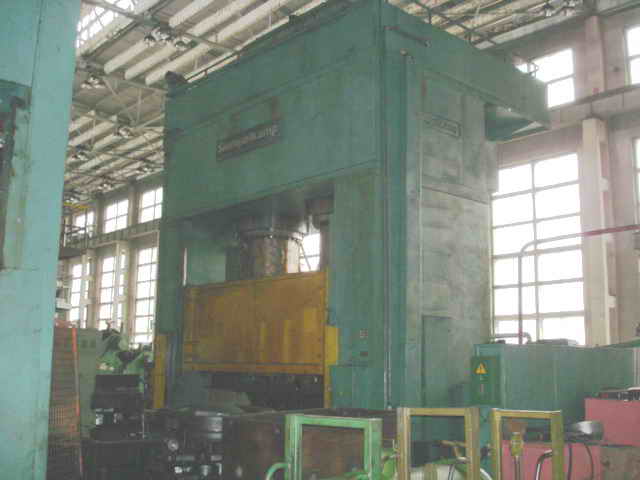

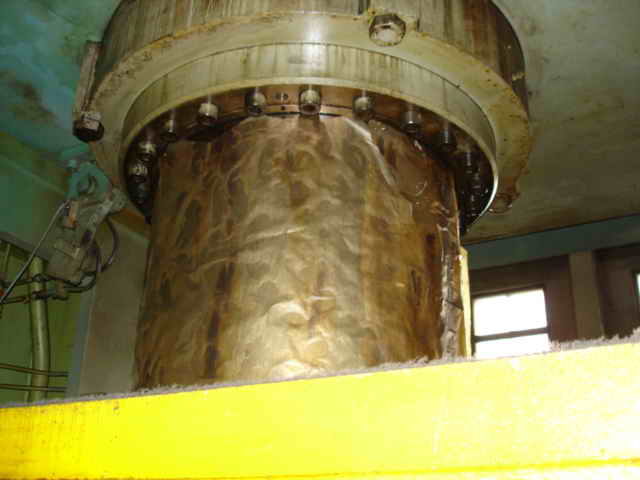

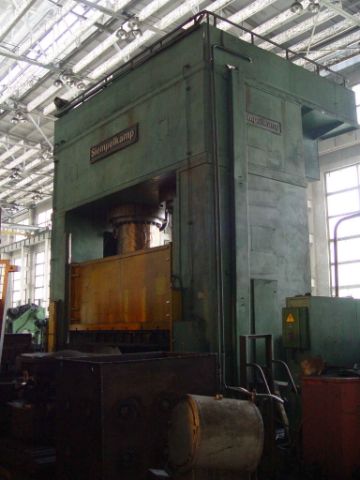

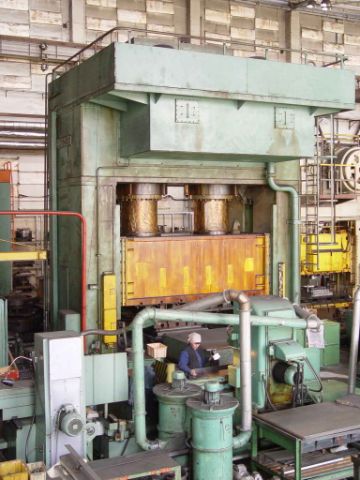

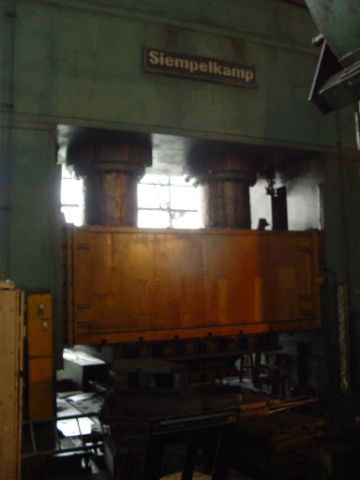

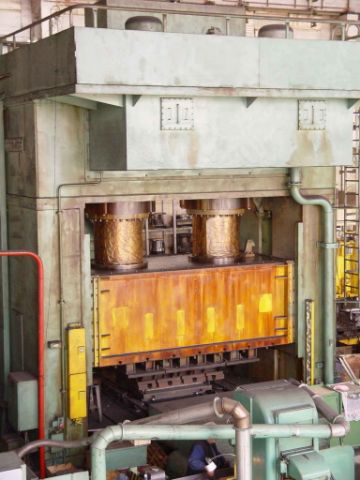

Siempelkamp 3150 ton Hydrauic Stamping Press (4000x2500 mm)

New in 1978
Force of idle moving, max under 260 bar, ton 3150
Force of back moving, max under 300 bar, ton 300
Force of air-ejector, forcing out max , ton 40-800
Force of air-ejector, pushing out max (inside the table), ton 25
Surface of the lower press table, mm 4000*2500
Surface of the moving table, mm 4180*2500
Surface of air-ejector, mm (inside the lower table) 3200*1600
Width in the light between guides in the front, mm 4020
Side slot between guides --
Running device of side table, mm 1000
Movement of air-ejector (inside the lower table), mm 400
Min. setting height , mm 800
Pusher in the sliding table, under the pushing itself --
Movement of the pusher in the running table --
Outside loading for:
- running press table, max ton 400
- air-ejector in the lower table, max --
The speed of lowing of the running table, mm/sec 350
The speed of pressing up to 1200 t, mm/sec 21
Under 3150 ton, mm/sec 8
The speed of the back movement, mm/sec 200
Working oil pressure, bar 260
Reducible power, kW 167
The point of the upper limit of the lower press table above floor, mm 600

Pump fabric Bruninghouse
Oil-hydraulic control fabric Zimpelcamp, Rexroth

The speed of pressing and back moving, and also of air-ejector pressure, regulated without steps for precise conformity for forging press

Location: Russia
