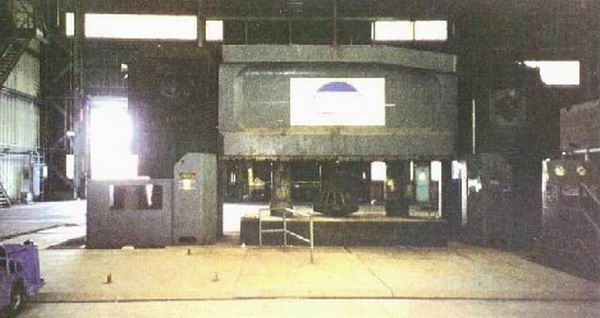

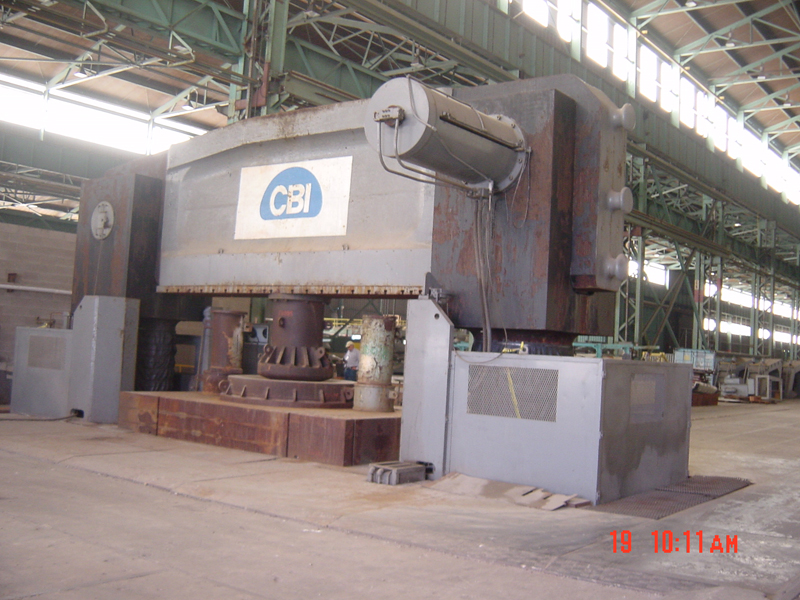

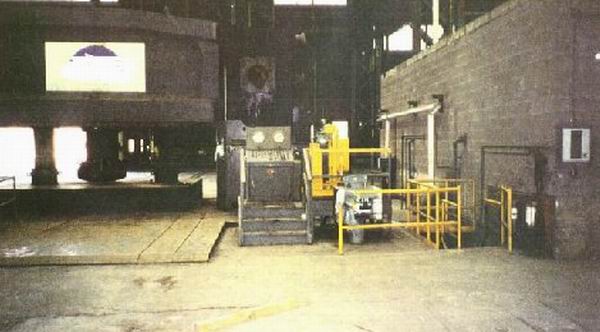

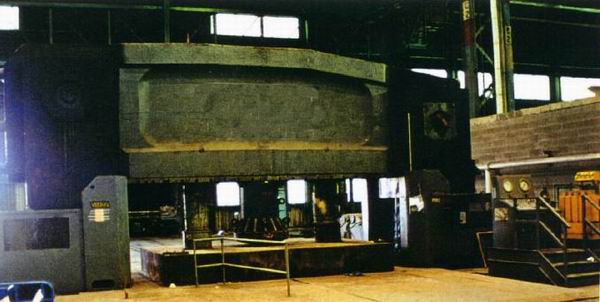

Verson Allsteel 12000 ton Hydraulic Stamping (Open Die Forging) Press

Brand / Make: Verson Allsteel, USA
Model: 12000HD4-240-192-2T
New in 1973

This is a specially built press for the US government, used to make Nuclear containment canisters.

Capacity of press @4780PSI: 12000 ton
Lifting capacity @4780PSI: 1680 ton
Stroke of table, working: 2160 mm
Stroke of table, total: 2743 mm
Press operating speeds
- rapid down: 2900 mm/min
- pressing: 350 mm/min
- return: 2514 mm/min
Platen size: 6100 x 1016 mm
Table size: 4876 x 6100 mm
Hydraulic removal to arbor
Pit required: 21.3 m

Notes: There are several pieces of TOOLING included with the press for making CYLINDERS and END CAPS for PRESSURE VESSELS.

 Condition: Assembled, but not under power and in excellent condition with very limited run time.

 This press has the capability to form high strength steel flat plate 400 mm thick in 360-degree cylinders upto 6 meters long.
It is the largest one of two ever built with this capacity and capability in the world.

Location: USA
