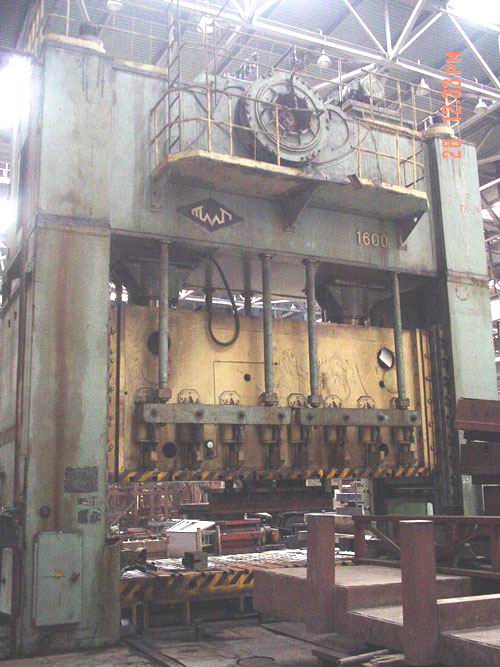

Voronezh 1600 ton Mechanical Press

Double crank single action press
VORONEZH mod. К3542
New in 1984
Nominal force ton 1600
Ram stroke mm 400(15-3/4")
Number of ram strokes per minute(automatic/single) 16 / 12
Shut height mm 780(30.7")
Adjustment of shut height mm 320(12.6")
Bed dimensions:
- left to right mm 5000 (197")
- front to back mm 2000 (79")
Ram dimensions: mm
- left to right mm 4850 (191")
- front to back mm 1800 (71")
Windows in the racks:
- width mm 1200 (47.25")
- height mm 1400 (55")
Height above floor level mm 8900 (350")
