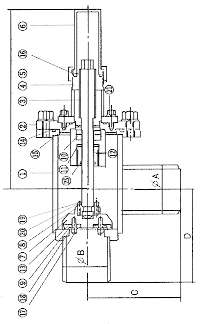

Refrigeration Absorption Valve (D303)

Shape

Materials

No.

Description

Material

1

BODY

STPG

2

HOUSING

S45C

3

STEM

SUS304

4

HOLDER

S45C

5

NUT

S45C

6

CAP

STPG

7

DISC

SUS304

8

STEM RING

S45C

9

SEAT WASHER

SUS304

10

WASHER

S45C

11

LOCK NUT

S45C

12

BUST

PBC2

13

SEAT

CR

14

O-RING

NBR

15

O-RING

NBR

16

O-RING

NBR

17

WRENCH BOLT

S45C

18

SPRING WASHER

S45C

19

WRENCH BOLT

S45C

20

SPRING WASHER

S45C

21

HEX BOLT

S45C

Drawing

Dimension

Type

A

B

C

D

E

25A

30.0

30.0

100

100

170

50A

60.5

60.5

120

120

230

80A

89.1

89.1

140

140

290

100A

144.3

144.3

155

155

350
