Metal Working Maschines


Homma 3-Axis CNC Lathe & 5-Axis CNC Milling Machining Center
Max.  turning diameter: 8000mm, table: 4000mm, Loading capa: 80 ton
* Built in 2003.

JSTC-04-1322

1976 Niigata Manual Type Double-Column Plano Miller
Model: 380DM     table size: 3800x12000mm width: 4300mm  height: 3100mm

JSTC-04-1366

1974 Waldrich Siegen NC Double-Column Plano Miller
PF-H-100     CENTROL R-4093     table size: 3000x7700(3250 x 8000)mm

JSTC-03-0774

1990 Waldrich Siegen NC Double-Column Plano Miller
HF-4500/3500     Digital NC    x/y/z: 14000/4900/3500   table size: 4000x12000mm

JSTC-04-1307

CNC Double-Column Plano Miller
Retrofitted in 2002   Table:1600x5000mm   Spindle dia 220mm/BT50

STC-04-1159


1977/1997 Ingersoll Double-Column Ver & Hor Plano Miller
 Table:1500x7800mm    x/y/z/w: 8900/2000/600/1650mm

JSTC-04-1166

1987 Hankook MTC Double-Column Ver & Hor Plano Miller
 Table:1400x6000mm    x/y/z/w: 6250/2000/1500/300mm

JCTC-04-1168

1994 Hankook MTC Manual Type Plano Miller
 Table:2200x8000mm    working area: 3140/8250/1650mm

STC-04-701-1

1996 Kaoming CNC Double-Column Machining Center
 Table:1500x3000mm    Control: Fanuc 15MEB   x/y/z: 3230/1600/700mm

JCTC-04-1276

1991 Toshiba CNC Horizontal Boring & Milling Machine
BF-132A-6  FANUC 15M  spindle: 132/245mm  x/y/z: 6000/3500/1000m

JSTC-04-1553

1985 Toshiba CNC Horizontal Boring Machine
BTN-13A     FANUC OM     table size: 1400x2000mm

JSTC-03-0791

1996 Kuraki CNC Horizontal Boring & Milling Machine
KBT-11W, DX-A   KURAKI / Fanuc 15M  boring spindle dia: 110mm   t/s: 1400x1600mm

JSTC-03-1012

1980 Scharmann Floor Type Manual HBM
 rotary able: 2500x3000mm  x/y/z: 10000/3150/2000mm  plate: 2500x5500mm

JSTC-04-1546

1989 Toshiba CNC Horizontal Table Type Boring & Milling M/C
 BTD-11R-16   777 Tosnuc   spindle: 110/225mm   x/y/z/w: 2000/1500/1450/500mm

JSTC-04-1556

1982 Mitsubishi CNC Horizontal Table Type Boring & Milling M/C
FANUC 18M  boring/milling dia: 150mm rotary  table size: 3600x3600mm

JSTC-04-779-2

2002 DAEWOO CNC Horizontal Machining Center
ACE-H100-2P     FANUC 15M     table size: 1000x1000mm

JSTC-03-1016

1996 Daewoo CNC Horizontal Machining Center ACE-H100-2P
 table: 1000x1000mm(x2)  x/y/z: 2000/1120/1000mm  ATC:60ea  Control: Fanuc 15M

JSTC-04-1564

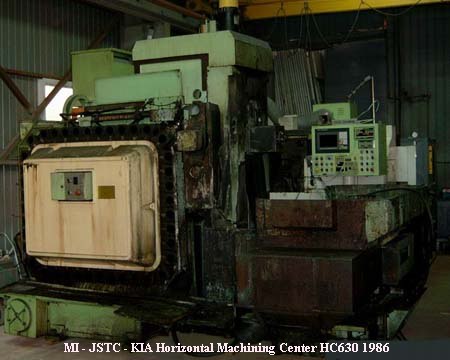

1986 KIA Horizontal Machining Center
HC630     FANUC 11M

JCTC-03-1207

1989 Toshiba CNC Horizontal Machining Center
 Table:800x800mm    Control: Tosnuc 600M  x/y/z: 1600/1200/1000mm

JSTC-04-891

1989 Toshiba CNC Horizontal Machining Center
 Table:800x800mm    Control: Tosnuc 600M  x/y/z: 1600/1200/1000mm

JCTC-04-891-1

1995 Daewoo CNC Machining Center
model: H500  control: Fanuc 15M

JSTC-04-2907

2002 Daewoo CNC Machining Center ACE-V650/1520
table: 1800x730mm  x/y/z: 1520/650/650mm  ATC:30ea  Control: Vision 380M

JSTC-04-2901

1994 Daewoo CNC Machining Center ACE-V650/1520
 table: 1800x730mm  x/y/z: 1520/650/650mm  ATC:30ea  Control: Fanuc OM

JSTC-04-2902

1981 OM CNC Vertical Lathe & Turning Center
TM2-16N   FANUC21iT   retofitted in May 2003   table dia: 1600mm   swing: 2000mm

JSTC-03-1043

1992 OM CNC Vertical Lathe & Turning Center
VT5-16N   FANUC - 15T   table dia: 1600mm   swing/turning: 2000/1700mm

JSTC-03-1015

1979 Berthiez V305 CNC Turning Lathe
Table diameter:1650mm   Turning capa: 1850mm  Fanuc OT

JCTC-04-1405-1

1979 Berthiez V303 CNC Turning Lathe
Table diameter:1350mm   Turning capa: 1550mm  Fanuc OT

JCTC-04-1405-2

1991 OM Single Column CNC Vertical Turning Mill TM2-10N
 table dia: 1000mm  turning dia/height: 1100/800mm  load capa:2 t  Control: Fanuc 15

JSTC-04-1565

1995 Tongil CNC Vertical Turning Center & Lathe TNL-120V
 swing/height: 1550/890mm  load capa: 4t  Control: Fanuc 0TC

JSTC-04-1563

1988 Okuma CNC Lathe
LS30N   Control: OSP-5000   Capa: D580x1000mm

JSTC-04-1274

1988 Okuma CNC Lathe
Lc30   Control: OSP-5000MG   Capa: D500x1000mm

JCTC-04-1272

1997 Heavy Duty Lathe
Work swing over bed: 2400mm   distance between centers: 12000mm

STC-04-1074

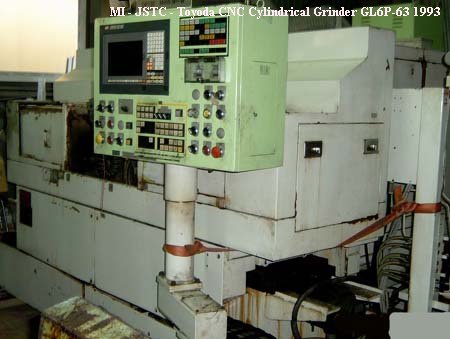

1993 Toyoda CNC Cylindrical Grinder
GL6P-63     GC32

JSTC-03-1206

1990 WAIDA Profile Grinder
PGX5000

JSTC-03-1210

1976 Modul Gear Hobbing Machine
model: ZFWZ30  max. workpiece dia: 4000mm  max. modul: 30

JSTC-04-2904

2002 Chiyoda CNC Pipe Bending Machine
SP-80SL

JSTC-03-1208

3-piece Tin Can Manufacturing Line (a complete line)
Krupp, Soudronic, SPS, Fleetwood & Etc.
Your target price will be welcomed!!!

JSTC-UM032

PET Machines and Other Plastic Processing Machines


 1994 Kaji Technology Compressor
  150kW, 45K (2 sets available)
 (additional 1996 250kW compressor available)

JSTC-04-1130-5

1999 Nissei ASB70DPH v2
 with several molds for wide mouth jars

1994 Nissei ASB650NH-II
 with dryer, chiller and mold (10-cav 1.5L)

Asia
- dismantled

1994 Nissei ASB16EX-II
with dryer and mold (20-cav, 1800ml mineral water --- this mold can be modified
for manufacturing 2L bottle with extra cost)

JSTC-03-1600

1983 & 1986 Nissei ASB50
 with dryer, chiller (& compressor)

Asia

1994 Aoki SBIII-1000H-60
 with dryer, mold temperature controller (2) and mold (18.9L mineral water)
 - inspection by Dry Cycling only without production

Korea
- For manufacturing PC bottle

1992 Aoki AKH-80
 with dryer, chiller and one set of mold

Korea

1998 Nissei PF6-2B
 with dryer

1998 Nissei HSO-4 HR Blow Molding Machine
 with preform transfer conveyor

1998 Nissei CM-2000 Crystallizer
 with preform conveyor & others

A complete line for manufacturing PET HR bottle
- Nissei PF6-2B & PF8-4B, Nissei CM-2000, Nissei HSO-4
- Shrink label insertin gmachine, Double side auto labeling machine
- Dryer, shrink packing machine and others

1994 Aoki SBIII-250LL-50
 with chiller, dryer, mold temperature contoller, compressor and etc.

1995 Cincinnati Miliacron Preform injection molding machine
 with 24-cav mold, dryer and chiller

1991 Nissei ASB650NH - for Korean customers only
 with dryer

1993 Nissei ASB650NII - for Korean customers only
 with dryer

1991 Nissei ASB650N - for Korean customers only
with dryer

1995 Nissei PF6-2B - for Korean customers only
 with dryer and compressor

1994 Nissei ASB70DPH v1- for Korean customers only
with dryer and some molds

1997 Nissei ASB650NH-II - for Korean customers only
with dryer

1994 Nissei ASB650NH-II - for Korean customers only
 with dryer

1994 Aoki SBIII-500LL-75

1993 Aoki SBIII-1000NL-100

1993 Aoki SBIII-250LL-50

1998 Aoki SBIII-250LL-50

1989 Aoki SBIII-250LS-50

1998 Aoki SBIII-500LL-75

1991 Nissei ASB100

1997 Aoki SBIII-500LL-75

1989 Nissei ASB70DPH

1994 Nissei ASB70DPH

1997 Nissei PF6-2B

1998 Nissei PF8-4B

 1993 Thimonnier PVC Bag Manufacturing Machine
  6100, 250, 500 & 1000ml linger bag

JSTC-04-0233

 1996 Krupp Kautex large container blow molding machine
  Model: KBS 2-60/40-S 90/22   Mold platen: 600x800mm

1980 OM Double Column Turning Center & Lathe
 table: 2500mm add.table: 3600mm  working area: 4000mm  turning height: 2300mm

JSTC-04-1511

1993 Waldrich Siegen 3000 x 13000 mm CNC Roll Lathe
3000 x 13000 mm  turning/boring dia: 3000/350-1800mm  load capa: 80 ton

JSTC-03-0415

1992 Doerries CNC Vertical Boring Machine
Model: VC2800/200MC   Table dia: 2000mm  Swing: 2800mm
Loading capa: min. 20 ton - max. 80 ton,  Sinumerik 880M

JCTC-04-1150

1993 Doerries CNC Vertical Boring Machine
Model: VC6500/500MC   Table dia: 5000mm  Swing: 6500mm
200ton, Sinumerik 880M

JSTC-04-1162

1993 Schiess-Wotan CNC  Floor Type Boring and Milling Machine
Model: RAPID 2/25R    spindle dia: 140mm   L2500xH2000mm 25ton
pallet 1800x2250mm 19ton, Sinumerik 880M

JCTC-04-1152

1993 Schiess CNC Floor Type Boring and Milling Machine
FB225     spindle dia:225m      L15500xH6000mm
R/T: 4000x3200mm   L/C: 80ton  S/C: Sinumerik 880M  F/P:8000/6000mm  ATC:120ea

JSTC-04-1153-1

1985 Schiess CNC Floor Type Boring and Milling Machine
FB160     spindle dia: 160mm     L8500xH6000mm   Overhauled/retrofitted in 1992
R/T: 2500x2500mm   L/C: 45ton   S/C:Sinumerik 840C, ATC  F/T

JCTC-04-1153-2

1996 Gidding & Lewis CNC Machining Center (2P)
Model: RAM630H8000   working area: 900x800x750mm   table:630x630mm(2P)

JSTC-04-1403-1

1996 Gidding & Lewis CNC Machining Center (2P)
Model: RAM630H8000   working area: 900x800x750mm   table:630x630mm(2P)

JSTC-04-1403-2

Schiess Manual Floor Type Horizontal Boring Mill
Spindle dia: 200mm   x/y/z/w: 14500/3500/1500/600  rotay  table: 3000x3000mm

JSTC-04-1314

1982 Okuma CNC Double-Column 5-face Machining Center
 Table:2000x5100mm   Spindle dia 110mm/BT50  x/y/z/w: 5100/2800/1450/800mm

JCTC-04-1161

1989 Toshiba CNC Horizontal Boring & Milling Machine
BF-132A-9     FANUC 11M     table size: 2500x2000mm

JSTC-03-4901

1992 Toshiba CNC Horizontal Table Type Boring & Milling M/C
BTD-11R 16   777 TOSNUC  boring/milling dia:110/225mm   table size:1400x1600mm

JSTC-03-1014

1996 SNK Traverse Type Machining Center
TMS-35VM  Fanuc 18MA   x/y/z/w:8000/3800/400/2500mm  table size:3000x7000mm

JSTC-04-1376

1990 Kuraki CNC Horizontal Boring & Milling Machine
KBT-13 LXA     FANUC 15M     table size: 1600x1800mm

1996 SNK CNC Double-Column Plano Miller
HF-5     Fanuc 15 Model B   x/y/z: 4000/2750/1650    table size: 2500x4300mm

1991 SNK CNC Double-Column Five Face Machining Center
HF-6M     FANUC 15MA     table size: 2000x5000mm

1992 SNK/HHI Double-Column CNC 5-Face Machining Center
HF-4M     FANUC 15M     dbc: 2500mm     table size: 2000x5000mm

Homma Manual & NC Double-Column Vertical Turning Lathe
Table dia: 5000mm    turning: max. 6300mm

1983 Scharmann Manual Horizontal Boring Mill
WF-150   x/y/z/w: 6000/3000/900/600mm   R/T: 3000x3000mm   50 ton

1979 Toshiba NC Vertical Turning Lathe
TD 40/65D    table: 4500mm    turning: 6500mm

4300 mm Double-Column Vertical Lathe with DRO, Type: SC43
faceplate dia: 4000mm  work piece dia: 4300mm  work piece height: 2000mm

2000 KIA(WIA) CNC Horizontal Table Type Boring & Milling M/C
KBN 135    FANUC 16M-C  boring/milling dia: 135/250mm  table size: 2000x1800mm

1981 Wotan CNC Table Type Horizontal Boring Mill
Spindel: 160mm   control: Simens 7M   x/y/z/w:: 4000/3000/1000/2000mm
Table size: 4000x2000mm

2001 DMG Vertical Machining Center
DMC-63V

2001 DMG CNC Lathe
CTX-400S2

1997 SCHAUDT CNC Cylindrical Grinder
SA7M     820 x 3000 mm

1995 MORI SEIKI CNC Hollow Spindle Lathe
SL8C     FANUC 18Ti

1997 MAZAK CNC Lathe
ST50     Mazatrol T plus

1995 MAZAK CNC Lathe
QT40     Mazatrol T plus

1982 MAZAK CNC Lathe
M-5     FANUC 6T

1987 Nissei ASB650H
 with dryer & chiller

1995 Nissei ASB70DPH
 with dryer, In-Mold Labelling System and mold

1991 Aoki SBIII-500LL-75
 with dryer

 1997 Nissei PF4-1B

1997 Nissei ASB70DPW
with 12-cav 600ml mold (28mm neck finish) - 2 sets available

1995 Nissei PF6-2B
with 1500ml mold (28mm neck finish)

 1984 Toshiba IS350E 27B
  16-cav Preform Injection Molding Machine (2 sets available)

JSTC-04-1130-1

 1988 Krupp P-50
  32-cav Preform Injection Molding Machine (2 sets available)

JSTC-04-1130-6

1992 Krupp B80 Blow Molding Machine80
 10-cav Blow  Molding Machine (2 sets available)

JSTC-04-1130-2

 A complete PET bottle manufacturing line (1.5L HR bottles)

JSTC-04-1130

 1992 Kohokuseiko Crystallizer
  Capacity 5000 preforms per hour:

JSTC-04-1130-3

 1996 Kohokuseiko Palletizer
  Capacity: 8000 bottles s per hour:

JSTC-04-1130-4

24 sets of Injection Molding Machines
Manufacturer: LG & Dong-Shin, manufactured in 1992~2001
For a time being, a package sale is possible only !!!

JSTC-04-1233

 Mineral Water Plant
  60 ton per hour, PET 500ml, 1800ml & 5-gal PC
