Detail Information of the Diaphram Valve.

Shape

Material


No.

Description

Material

Remark

1

VALVE BODY

SCS13

¡¡

2

CLAMP PACKING

VITON

¡¡

3

SHAFT SUPPORT

A1 DC

¡¡

4

WASHER

SM30C

¡¡

5

HEX-NUT

SM30C

¡¡

6

SHAFT

STS304

¡¡

7

HANDLE

A1 DC

¡¡

8

SPRING PIN

SM45C

¡¡

9

HEX-BOLT

SM30C

¡¡

10

HEX-NUT

SM30C

¡¡

11

SPRING WASHER

SM30C

¡¡

12

CLAMP

A1 DC

¡¡

13

WEARING WASHER

PBS

¡¡

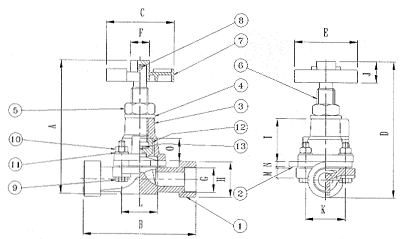

Drawing


Dimension

Dim.(mm) Standard

15A

20A

25A

40A

A

120

133

145

182.5

B

103

119

127

160

C

¨ª62

¨ª62

¨ª79

¨ª93

D

122.5

134.5

146.5

185

E

56.8

56.8

73

90.4

F

¨ª17.5

¨ª17.5

¨ª18

¨ª18.5

G

¨ª22

¨ª27.5

¨ª34.5

¨ª38

H

¨ª32

¨ª35.5

¨ª43.5

¨ª49.5

I

38.5

44.5

50

64

J

19

20

19

20

K

36 ¡¾0.5

45

55

70

L

33 ¡¾0.5

40

46

66

M

9

9

9

10.5

N

5

5.5

6.5

8

O

20 +1 -0

20

20

35.5
