* Recycling plants for contaminated and mixed films (PE)
* Recycling plants for contaminated cup fraction (PP / PS etc.)
* Recycling plants for bottles and other contaniers (HDPE)

The colour of the resulting granulate varies depending on the colour grades and degree of print of the plastic used.

Specific colour demands can be met largely by adding master batch accordingly during extrusion.

From the bale feeding conveyor to the extruder via washing plant:

We deliver turnkey and fully automatic plastic recycling systems for various materials.
Experienced specialist for planning, installation, start-up and servicing guarantee the greatest possible availability
and best functionality in operating our plants. Our plants are designed according to the latest technological
standard and the experience from our own recycling factories are immediately being incorporated
into the construction of our plants, at the same time offering an increase in our technical know-how.

Components of a Film-Waste-Recycling-Plant including Extruder-Regranulationg-Line for conterminated and mixed Films:
bale feeding conveyor; bale opener / unraveler; ascending transportation belt; sorting stage;
ascending transportation belt with magnet; Shredder; trough chain conveyor; 2-step pre-cleaning centrifuge;
trough chain conveyor; silo with bottom dosing unit; blower; cyclone with water inflow connection piece;
turbo-washer-compact installation; sink-swim-basin with scraper floor; dry press; blower; cyclone;
2-step turbo-drier; blower; mixing silo with double carry out screw; cyclone; hot air unit; centrifuge for drying;
mixing silo with double carry out screw; stuffing unit; single screw extruder; automatic filtering screen unit;
pelletizing; water system with drier; mixing silo with carry out screw; baffle plate thickener; collecting container;
flocculation stair; baffle plate thickener; pebbles filtering unit; filling material container;
preparation- and dosing station; decanter; floor groove;

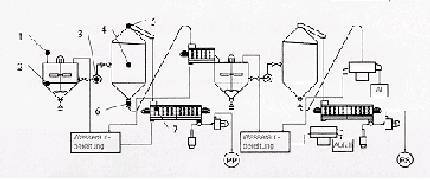

The following example shows the layout of two combined separation stages.
The initial material: mixture of ground cups (PP and PS), mixed with aluminium

 Separation procedure for mixed / contaminated plastics :
Precleaned ground material (1) is mixed in a mixing container (2) with water or liquid of a certain density.
This mixture of solid - liquid matter is fed by a pump (3) into a separation container (4). A patented process is applied to
convert the turbulent flow into a laminar flow. The material can now separate in a setting-zone of the container relative to
the specific gravity of the separation medium. The light weight outlet (5) at the top and the heavy weight outlet (6)
at the bottom of the container feed the material to a drainage (7) and to the following dryer (8).
The drained liquid is returned into the fluid circulation (water processing plant). The plant can be extended
with more separation units to continue the break up of the gained fractions by other specific densities.

Technical Data of the Plastics-Separation-Line
